Semi-automatic wrap-around vertical labeller

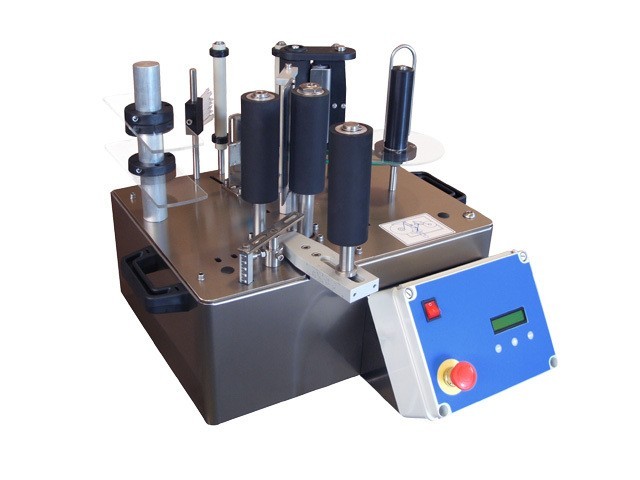

Labelling device for small series for vertical wrap-around labellingTrifix-10H is a semi-automatic table-top labelling machine, able to stick front and back label during the same cycle. The product is standing on a small platform in between the three rollers. This machine allows to label round glass bottles but also pots and plastic products.
With appropriate options it is possible to read reference marks, to stick a label referred to a special lid and even installing a marking system. The machine has an essential stainless steel structure and a ribbed roller for the silicone paper with quick releasing.
The basic version only sticks one label.
Technical specifications
- Product diameter: ø60 mm to ø120 mm (Optional: ø17mm - ø200 mm)
- Label width: max. 140 mm (Optional: up to190 mm)
- Label length: max. 280 mm (Optional: up to 340 mm)
- Label roll (reel holder):
- Outer diameter: max. ø270 mm
- Core diameter: ø76 mm
- Weight appliance: 55 kg
- Power: 230 V, 50 Hz
- Dimensions: 700 x 615 x 480 mm
