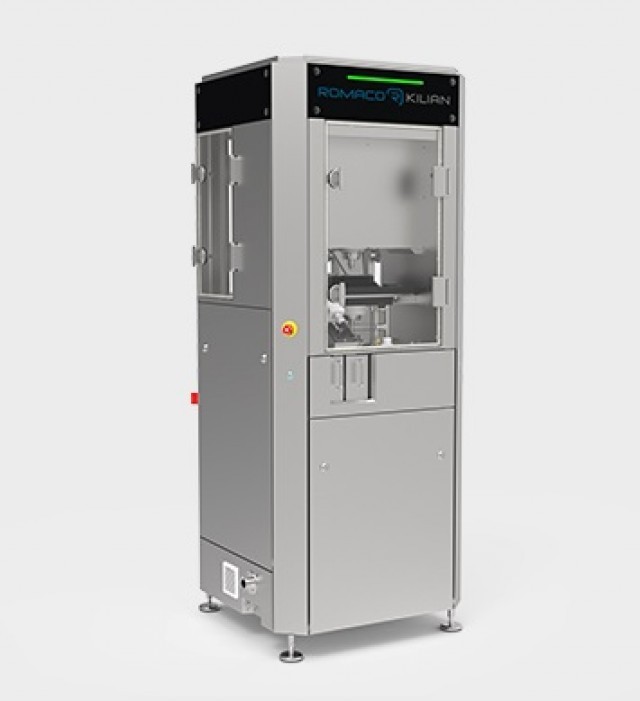

Tablet press Pilot / All-in-one from Romaco Kilian
for research and development solution for the simulation of all common rotary tablet pressesThe "all-in-one" R+D solution for real compression simulation of all common rotary tablet presses.
Single-punch high-speed press for R+D - The extension of the KTP series for laboratory applications.
- Single- and multi-layer tablets
- Up to ø 40 mm and 15 mm tablet thickness.
Available with: - Tab-in-Tab
- High Containment
- Up to ø 40 mm and 15 mm tablet thickness.
- Physical compression simulation of all Kilian and other common tablet presses
- .
- Recipe analyses and production optimisation
- .
Technical specifications
| Tool type | EU/TSM-B or D, specific* |
| Die | BBS, BB, B, D, oversized* |
| Maximum tablet diameter (mm) | 40 |
| Maximum die filling (mm) | 50 |
| Maximum output (tablets/hour)** | 1800 (mono layer) |
| Fill shoes (up to 3) | Hand feed, gravity, paddle force feeder, core feeder |
| Dwell time (ms) | < 2 ms can be extended up to > 3 s |
| Compression mode | Force or displacement driven |
| Penetration depth | Adjustable from 1 mm to 10 mm |
| Maximum tamping-, pre- and main compression (kN) | 50, 80* |
| Punch movement | Selectable 1 punch only or upper + lower |
| Standard voltage (V); frequency (Hz) | 400/480 (+/- 10%); 50/60 |
| Weight (kg) | 1100 |
